Product Summary

The SC802 and SC802A are fully integrated, single cell,constant-current/constant-voltage Lithium-Ion/LithiumPolymer battery chargers. With an integrated timer and complete charge control algorithm, the devices are opti- mized for stand-alone charger applications. They provide for programmable pre-charge, fast-charge, and termina- tion current settings. The devices can be programmed to terminate the charge cycle based on the output current or the time-out of the programmable timer. The fast-charge current is typically set with an external resistor but can be modified with the analog fast-charge input to allow a Power Management Controller to control the fast-charge current setting via DAC.

Parametrics

Specifications of SC802IMLTR
Battery Type Li-Ion, Li-Polymer Input Voltage 14V
Battery Charge Voltage 4.2V Charge Current Max 1A

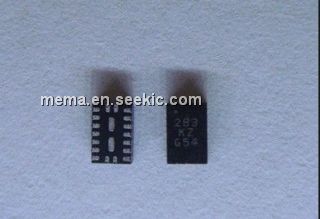

Battery Ic Case Style MLPQ No. Of Pins 16
No. Of Series Cells 1 Lead Free Status / RoHS Status Contains lead / RoHS non-compliant

Features

POWER MANAGEMENTFeaturesIntegrated charger with pass FET, reverse-blockingdiode, sense resistor, timer, and thermal protectionBattery Voltage — 4.1V, 4.2V, and adjustableProgrammable pre-charge, fast-charge, & termina-tion currentBattery voltage controlled to 1% accuracySoft-start for glitch-free adaptor plug-inContinuous charge current — Up to 1.5ACharge current monitor output for microcontroller orADC interfaceInput voltage range — 4.3V to 14VBattery Drain when not charging — 0.1μAOperates without a battery in regulated LDO modeSmall 4 x 4(mm) 16 lead MLPQ packageNTC thermistor sense inputAdjustable up to 6 Hour programmable charge timerOver-current protection in all charging statesOver-voltage protectionRemote Kelvin sensing at the battery terminalsADC input current control capableStatus output for charging and end of charge cycleCharges Li-Ion, Li-Polymer, NiCd, and NiMH Batteries

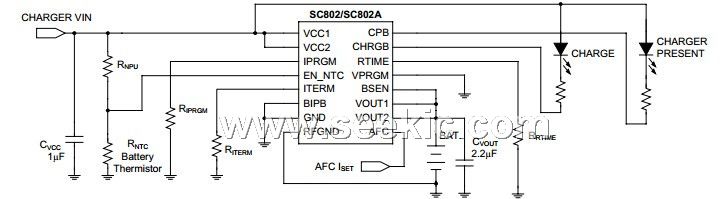

Diagrams
