Product Summary
GENERAL DESCRIPTION
AVX is the market leader in the development and manufacture ofcapacitor arrays. The smallest array option available from AVX, the0405 2-element device, has been an enormous success in theTelecommunications market. The array family of products alsoincludes the 0612 4-element device as well as 0508 2-element and4-element series, all of which have received widespread acceptancein the marketplace.AVX capacitor arrays are available in X5R, X7R and NP0 (C0G)ceramic dielectrics to cover a broad range of capacitance values.Voltage ratings from 6.3 Volts up to 100 Volts are offered. AVXalso now offers a range of automotive capacitor arrays qualified toAEC-Q200 (see separate table).Key markets for capacitor arrays are Mobile and Cordless Phones,Digital Set Top Boxes, Computer Motherboards and Peripheralsas well as Automotive applications, RF Modems, NetworkingProducts, etc.
Parametrics
| Capacitance | 0.1μF | Package / Case | 0405 (1012 Metric) |
|---|---|---|---|
| Voltage - Rated | 10V | Dielectric Material | Ceramic |
| Number Of Capacitors | 2 | Circuit Type | Isolated |
| Temperature Coefficient | X5R | Tolerance | ±20% |
| Mounting Type | Surface Mount | Height | 0.026" (0.66mm) |
| Size / Dimension | 0.054" L x 0.039" W (1.37mm x 1.00mm) | No. Of Capacitors | 2 |
| Tolerance (+ Or -) | 20% | Voltage | 10VDC |
| Number Of Terminals | 4Terminal | Temp Coeff (dielectric) | X5R |
| Operating Temp Range | -55C to 85C | Mounting Style | Surface Mount |
| Construction | SMT Chip | Failure Rate | Not Required |
| Product Height (mm) | 0.66mm | Product Depth (mm) | 1.37mm |
| Product Length (mm) | 1mm | Lead Diameter (nom) | Not Requiredmm |
| Terminal Pitch | 0.64mm | Capacitance Tolerance | ?± 20% |

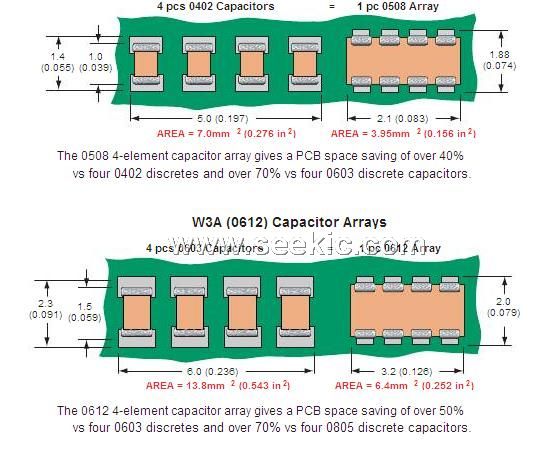

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 W1A2ZD104MAT2A |
AVX |
Capacitor Arrays & Networks 10volts .1uF 20% |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
W1A23A101KAT2A |
AVX |
Capacitor Arrays & Networks 25volts 100pF 10% 0405 C0G 2CAPS |
Data Sheet |
|
|
||||||||||||
|
W1A23A120KAT2A |
AVX |
Capacitor Arrays & Networks 25volts 12pF 10% 0405 C0G 2CAPS |
Data Sheet |
|
|
||||||||||||
|
W1A23A150KAT2A |
AVX |
Capacitor Arrays & Networks 25volts 15pF 10% 0405 C0G 2CAPS |
Data Sheet |
|
|
||||||||||||
|
W1A23A220KAT2A |
AVX |
Capacitor Arrays & Networks 25volts 22pF 10% 0405 C0G 2CAPS |
Data Sheet |
|
|
||||||||||||
|
W1A23A220KAT4A |
AVX |
Capacitor Arrays & Networks 25volts 22pF 10% 0405 C0G 2CAPS |
Data Sheet |
|
|
||||||||||||
|
W1A23A270KAT2A |
AVX |
Capacitor Arrays & Networks 25volts 27pF 10% 0405 C0G 2CAPS |
Data Sheet |
|
|
||||||||||||
