Product Summary
The TRF3705 is a low-noise direct quadrature modulator, capable of converting complex modulated signals from baseband or IF directly up to RF. The TRF3705 is a high-performance, superior-linearity device that is ideal to up-convert to RF frequencies of 300 MHz implemented as a double-balanced mixer. The RF differential-to-single-ended converter that is capable of driving a single-ended 50-Ω load. The TRF3705 requires a 0.25-V common-mode voltage for optimum linearity performance. The TRF3705 also provides a fast power-down pin that can be used to reduce power dissipation in TDD applications. The TRF3705 is available in an RGE-24 VQFN package.
Parametrics
Specifications of TRF3705IRGER
Product Category Modulator / Demodulator Rohs yes
Package / Case VQFN-24 Maximum Operating Temperature + 85 C
Minimum Operating Temperature - 40 C Operating Supply Voltage 3.3 V
Operating Temperature Range - 40 C to + 85 C Operating Voltage 3.3 V
Factory Pack Quantity 3000
Features
FEATURES1? High Linearity:23– Output IP3: 30 dBm at 1850 MHz?Low Output Noise Floor: –160 dBm/Hz?78-dBc Single-Carrier WCDMA ACPRat –10-dBm Channel Power?Unadjusted Carrier Suppression: –40 dBm?Unadjusted Sideband Suppression: –45 dBc?Single Supply: 3.3-V Operation?1-bit Gain Step Control?Fast Power-Up/Power-DownAPPLICATIONS?Cellular Base Station Transmitter?CDMA: IS95, UMTS, CDMA2000, TD-SCDMA?LTE (Long Term Evolution)?TDMA: GSM, EDGE/UWC-136?Multicarrier GSM (MC-GSM)?Wireless MAN Wideband Transceivers

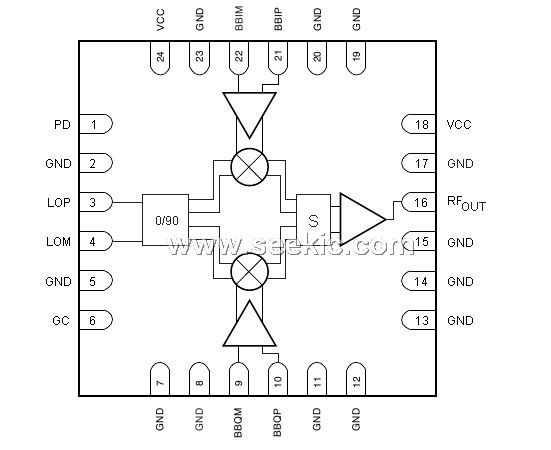

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TRF3705IRGER |
Texas Instruments |
Modulator / Demodulator 300MHz to 4GHz Quad- rature Modulator |
Data Sheet |
|
|
||||||||||||
