Product Summary
Description
Using the latest high voltage technology based ona patented strip layout, STMicroelectronics hasdesigned an advanced family of IGBTs, thePowerMESH? IGBTs, with outstandingperformances. The suffix “S” identifies a familyoptimized to achieve very low VCE(sat) (@ maxfrequency of 1KHz).
Applications
■Low frequency motor controls■Aluminum welding equipment
Parametrics
| Configuration | Single | Voltage - Collector Emitter Breakdown (max) | 600V |
|---|---|---|---|
| Vce(on) (max) @ Vge, Ic | 1.6V @ 15V, 100A | Current - Collector (ic) (max) | 200A |
| Current - Collector Cutoff (max) | 500μA | Input Capacitance (cies) @ Vce | 1.56nF @ 25V |
| Power - Max | 600W | Input | Standard |
| Ntc Thermistor | No | Mounting Type | Chassis Mount |
| Package / Case | ISOTOP | Transistor Type | IGBT |
| Dc Collector Current | 200A | Collector Emitter Voltage Vces | 600V |
| Power Dissipation Pd | 600W | Operating Temperature Range | -55?°C To +150?°C |
| No. Of Pins | 4 | Collector- Emitter Voltage Vceo Max | 600 V |
| Collector-emitter Saturation Voltage | 1.2 V | Maximum Gate Emitter Voltage | +/- 20 V |
| Continuous Collector Current At 25 C | 200 A | Gate-emitter Leakage Current | +/- 100 nA |
| Power Dissipation | 600 W | Maximum Operating Temperature | + 150 C |
| Continuous Collector Current Ic Max | 200 A | Minimum Operating Temperature | - 55 C |
Features
General features
High input impedance (voltage driven)■Low on-voltage drop (Vcesat)■Off losses include tail current■Low gate charge■High current capability

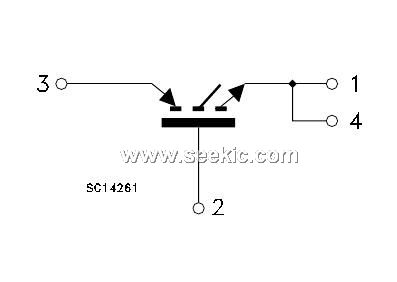

Diagrams
