Product Summary
μThePD720101 complies with the Universal Serial Bus Specification Revision 2.0 and Open Host ControllerInterface Specification for full-/low-speed signaling and Intel''''s Enhanced Host Controller Interface Specification forhigh-speed signaling and works up to 480 Mbps. Theinterface and USB 2.0 transceivers into a single chip.
Parametrics
Specifications of UPD720101GJ-UEN |
|||
|---|---|---|---|
| Lead Free Status / RoHS Status | Supplier Unconfirmed | ||
Features
? Compliant with Universal Serial Bus Specification Revision 2.0 (Data rate 1.5/12/480 Mbps)
? Compliant with Open Host Controller Interface Specification for USB Rev 1.0a
? Compliant with Enhanced Host Controller Interface Specification for USB Rev 1.0
? PCI multi-function device consists of two OHCI host controller cores for full-/low-speed signaling and one EHCIhost controller core for high-speed signaling.
? Root hub with 5 (max.) downstream facing ports which are shared by OHCI and EHCI host controller cores.
? All downstream facing ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps)transaction.? Configurable number of downstream facing ports (2 to 5)
? 32-bit 33 MHz host interface compliant to PCI Specification release 2.2
? Supports PCI Mobile Design Guide Revision 1.1
? Supports PCI-Bus Power Management Interface Specification release 1.1
? PCI bus bus-master access
? System clock is generated by 30 MHz X’tal or 48 MHz clock input.? System clock frequency should be set from system software (BIOS) or EEPROM. More detail, seeUser’s Manual.
? Operational registers direct-mapped to PCI memory space
? Legacy support for all downstream facing ports. Legacy support features allow easy migration for motherboardimplementation.
? 3.3 V power supply, PCI signal pins have 5 V tolerant circuit

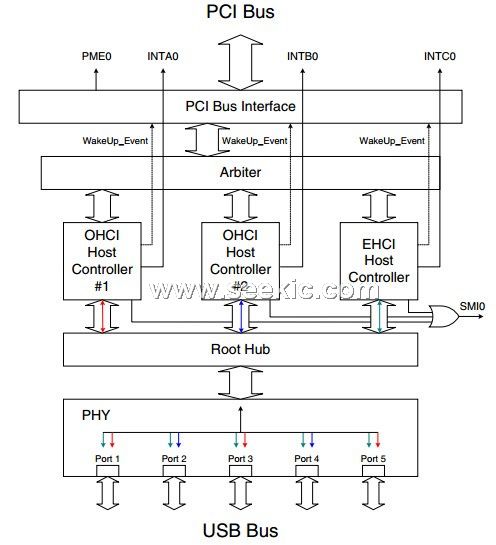

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UPD720101GJ-UEN-A |
|

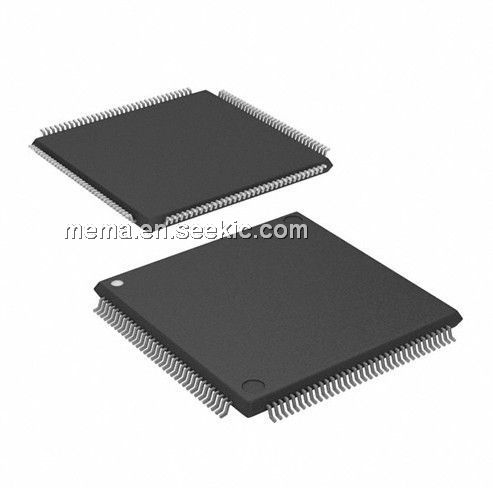

HOST CTLR USB 2.0 144-LQFP |
