Product Summary

The 82574 family (82574L and 82574IT) are single, compact, low power components that offer a fully-integrated Gigabit Ethernet Media Access Control (MAC) and Physical Layer (PHY) port. The 82574L uses the PCI Express* (PCIe*) architecture and provides a single-port implementation in a relatively small area so it can be used for server and client configurations as a LAN on Motherboard (LOM) design. The 82574 family can also be used in embedded applications such as switch add-on cards and network appliances.

Parametrics

Specifications of WG82574IT S LBAC
Ethernet Type IEEE 802.3, IEEE 802.3u, IEEE 802.3ab Supply Voltage Range 3V To 3.6V
Operating Temperature Range -40?°C To +85?°C Digital Ic Case Style QFN
No. Of Pins 64 Package / Case QFN
Interface Type I2C, JTAG, PCI, SPI Rohs Compliant Yes
Lead Free Status / RoHS Status Lead free / RoHS Compliant

Features

PCI Express* (PCIe*)?— 64-bit address master support for systemsusing more than 4 GB of physical memory— Programmable host memory receive buffers(256 bytes to 16 KB)— Intelligent interrupt generation features toenhance driver performance— Descriptor ring management hardware fortransmit and receive software controlled reset(resets everything except the configurationspace)— Message Signaled Interrupts (MSI and MSI-X)— Configurable receive and transmit data FIFO,programmable in 1 KB incrementsMAC?— Flow Control Support compliant with the802.3X Specification— VLAN support compliant with the 802.1QSpecification— MAC Address filters: perfect match unicast— filters; multicast hash filtering, broadcast filter— and promiscuous mode— Statistics for management and RMOM— MAC loopbackPHY?— Compliant with the 1 Gb/s IEEE 802.3 802.3u802.3ab Specifications— IEEE 802.3ab auto negotiation support— Full duplex operation at 10/100/1000 Mb/s— Half duplex at 10/100 Mb/s— Auto MDI, MDI-X crossover at all speedsFebruary 2011High Performance?— TCP segmentation capability compatible withLarge Send offloading features— Support up to 64 KB TCP segmentation (TSOv2)— Fragmented UDP checksum offload for packetreassemble— IPv4 and IPv6 checksum offload support(receive, transmit, and large send)— Split header support— Receive Side Scaling (RSS) with two hardwarereceive queues — 9 KB jumbo frame support — 40 KB packet buffer size Manageability ? — NC-SI for remote management core — SMBus advanced pass through interface Low Power ? — Magic Packet* wake-up enable with unique MAC address — ACPI register set and power down functionality supporting D0 andD3 states — Full wake up support (APM and ACPI 2.0) — Smart power down at S0 no link and Sx no link — LAN disable function Technology ? — 9 mm x 9 mm 64-pin QFN package with Exposed Pad* — Configurable LED operation for customization of LED displays — TimeSync offload compliant with the 802.1as specification — Wider operating temperature range; -40 °C to 85 °C (82574IT only)

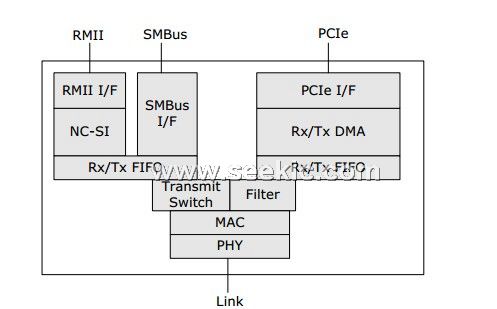

Diagrams
