Product Summary
The IDT821024 is a single-chip, four channel PCM CODEC with on-chip filters. The device provides analog-to-digital and digital-to-analogconversions and supports both a-law andfilters in IDT821024 provides the necessary transmit and receive filteringfor voice telephone circuit to interface with time-division multiplexedsystems. All of the digital filters are performed in digital signal processorsoperating from an internal clock, which is derived from MCLK. The fixedfilters set the transmit and receive gain and frequency response.In the IDT821024 the PCM data is transmitted to and received fromthe PCM highway in time slots determined by the individual Frame Syncsignals (FSRMHz. Both Long and Short Frame Sync modes are available in theIDT821024. The IDT821024 can be used in digital telecommunication applications such as PBX, Central Office Switch, Digital Telephone and Integrated Voice/ Data Access Unit
Parametrics
Specifications of 821024J Package 32PLCC Number Of Channels 4ADC /4 DAC Number Of Dacs 4 Operating Supply Voltage 5 V
Features
FEATURES4 channel CODEC with on-chip digital filtersSelectable A-law or -law compandingMaster clock frequency selection: 2.048 MHz, 4.096 MHz or8.192 MHz- Internal timing automatically adjusted based on MCLK andframe sync signalSeparate PCM and master clocksSingle PCM port with up to 8.192 MHz data rate (128 time slots)Transhybrid balance impedance hardware adjustable via externalcomponentsTransmit gains hardware adjustable via external componentsLow power +5.0 V CMOS technology+5.0 V single power supplyPackage available: 32 pin PLCC, 44 pin TQFP

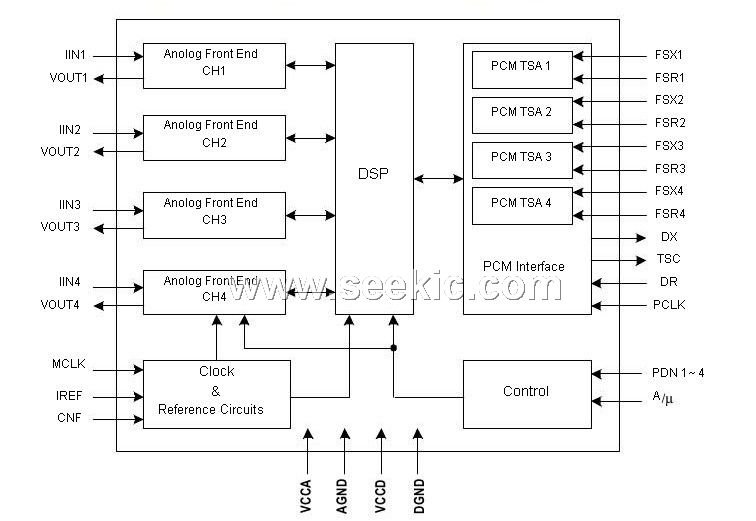

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 821024J |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
821024J8 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
821024JG |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
821024JG8 |
Other |
|
Data Sheet |
Negotiable |
|
||||
