Product Summary

The UDA1341TS is a single-chip stereo Analog-to-Digital Converter (ADC) and Digital-to-Analog Converter (DAC) with signal processing features employing bitstream conversion techniques. Its fully integrated analog front end, including Programmable Gain Amplifier (PGA) and a digital Automatic Gain Control (AGC). Digital Sound Processing (DSP) featuring makes the device an excellent choice for primary home stereo MiniDisc applications, but by virtue of its low power and low voltage characteristics it is also suitable for portable applications such as MD/CD boomboxes, notebook PCs and digital video cameras. The UDA1341TS is similar to the UDA1340M and the UDA1344TS but adds features such as digital mixing of two input signals and one channel with a PGA and a digital AGC

Parametrics

Specifications of 935254530512
Single Supply Voltage (typ) 3V Single Supply Voltage (min) 2.4V

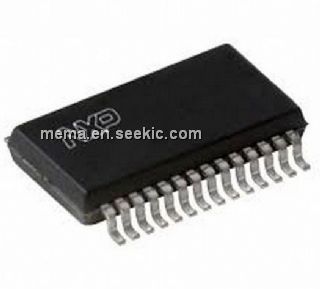

Single Supply Voltage (max) 3.6V Package Type SSOP
Lead Free Status / Rohs Status Compliant

Features

Low power consumption? 3.0 V power supply? 256f, 384for 512fsystem clock frequencies (fsss? Small package size (SSOP28)? Partially pin compatible with UDA1340M andUDA1344TS? Fully integrated analog front end including digital AGC? ADC plus integrated high-pass filter to cancel DC offset? ADC supports 2 V (RMS value) input signals? Overload detector for easy record level control? Separate power control for ADC and DAC? No analog post filter required for DAC? Easy application? Functions controllable via L3-interface.1.2Multiple format data interface? I2S-bus, MSB-justified and LSB-justified formatcompatible? Three combinational data formats with MSB data outputand LSB 16, 18 or 20 bits data input? 1finput and output format data rate.s1.3DAC digital sound processing? Digital dB-linear volume control (low microcontrollerload)? Digital tone control, bass boost and treble? Digital de-emphasis for 32, 44.1 or 48 kHz audio samplefrequencies (f)s? Soft mute.1.4Advanced audio configuration? DAC and ADC polarity control ? Two channel stereo single-ended input configuration ? Microphone input with on-board PGAOptional differential input configuration for enhanced ADC sound quality ? Stereo line output (under microcontroller volume control) ? Digital peak level detection ? High linearity, dynamic range and low distortion

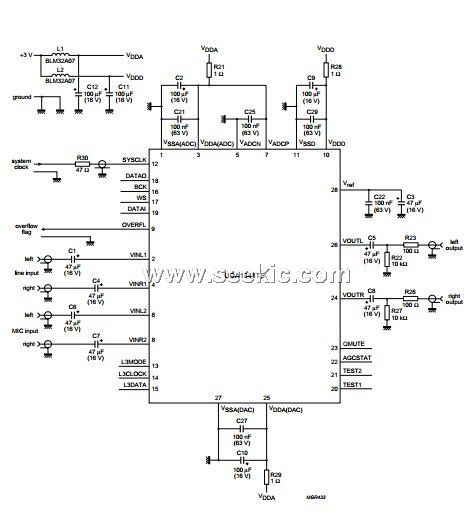

Diagrams
