Product Summary
MIC2545A/2549AGeneral DescriptionThe MIC2545A and MIC2549A are integrated high-sidepower switches optimized for low loss DC power switchingand other power management applications, including Ad-vanced Configuration and Power Interface (ACPI). TheMIC2545A/49A is a cost-effective, highly integrated solutionthat requires few external components to satisfy USB andACPI requirements.Load current management features include a precision,resistor-programmable output current-limit and a soft-startcircuit, which minimizes inrush current when the switch isenabled. Thermal shutdown, along with adjustable current-limit, protects the switch and the attached device.
Parametrics
Specifications of MIC2549A-1YM Input Type Non-Inverting Number Of Outputs 1 On-state Resistance 35 mOhm Current - Peak Output 3A Voltage - Supply 2.7 V ~ 5.5 V Operating Temperature -40°C ~ 85°C Mounting Type Surface Mount Package / Case 8-SOIC (3.9mm Width) Short Circuit Current Limit 0.5 to 3A Input Voltage Range 2.7 to 5.5V Operating Temp Range -40C to 85C Operating Temperature Classification Industrial Mounting Surface Mount Pin Count 8 Package Type SOIC Lead Free Status / RoHS Status Lead free / RoHS Compliant Current - Output / Channel - Other names 576-2180 MIC2549A-1YM
Features
? 2.7V to 5.5V input? Adjustable current-limit up to 3A? Reverse current flow blocking? 90 A typical on-state supply current? 1 A typical off-state supply current? 50m maximum on-resistance? Open-drain fault flag? Thermal shutdown? Thermal shutdown output latch (MIC2549A)? 2ms (slow) soft-start turn-on, fast turnoff? Available with active-high or active-low enableApplications? USB power distribution? PCI Bus Power Switching? Notebook PC? ACPI power distribution? PC card hot swap applications? Inrush current-limiting

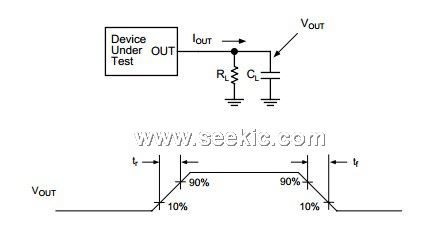

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MIC2549A-1YM |
|
IC SW CURR LIMIT HI SIDE 8-SOP |
Data Sheet |
|
|
||||||||||||||
|
MIC2549A-1YM TR |
|
IC SW CURR LIMIT HI SIDE 8-SOP |
Data Sheet |
|
|
||||||||||||||
