Product Summary

The STAC9200 is a high quality, 2-channel audio CODECcompatible with the Intel High Definition (HD) AudioInterface. The STAC9200 provides Stereo 24-Bit resolutionwith sample rates up to 192 KHz. SPDIF I/O providesconnectivity to consumer electronic equipment. TheSTAC9200 incorporates IDT's proprietary SD technology toachieve an estimated DAC SNR in excess of 100dB. TheSTAC9200 provides high quality, HD Audio capability tonotebook and cost sensitive desktop PC applications

Parametrics

Specifications of STAC9200X5NAEB1XR
Package 32VFQFPN EP Adc/dac Resolution 24 Bit
Number Of Channels 2ADC /2 DAC Sampling Rate 192 KSPS
Number Of Dacs 2 Operating Supply Voltage 3.3 V

Features

High performance SD technology?100dB DAC SNR?Intel HD Audio Interface?Two Channel DACs and ADCs with 24-bitresolution?Sample rates up to 192 KHzIDT?2-CHANNEL HIGH DEFINITION AUDIO CODEC?Mixer-less design?Low-latency Karaoke Mode Supported?Integrated Headphone Amplifiers?Stereo Microphone?Supports Stereo Microphone?Microphone Boost 0, 10, 20, 30, 40dB?Direct CDROM Recording Mixerless Design?S/PDIF In and OutTM?Universal Jacks?Adjustable VREF Out?Digital PC Beep to all outputs?+3.3 V, +4 V and +5 V analog power supply options(The +4 V Analog voltage is supported by the +5 V version of the STAC9200. Request +4 V configuration of the driver.) ? 32-pad QFN (5mm x 5mm) and 48-pin LQFP package options

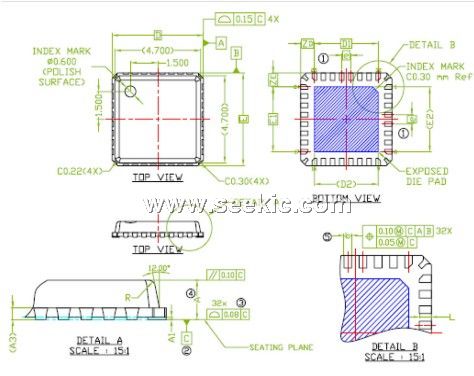

Diagrams
