Product Summary

IDT's STAC9750/9751 are general purpose, full duplex, audio CODECs conforming to the analog component spec- ification of AC'97 (Audio CODEC 97 Component Specifica- tion Rev. 2.2). They have 18-bit ADCs and 20-bit DACs. The STAC9750/9751 incorporate IDT's proprietary Σ? tech- nology to achieve a DAC SNR in excess of 89dB. The DACs, ADCs and mixer are integrated with analog I/ Os, which include four analog line-level stereo inputs, two analog line-level mono inputs, two stereo outputs, and one mono output channel. The STAC9750/9751 include digital input/output capability for support of modern PC systems and also an output that supports the SPDIF format. The STAC9750/9751 is a standard 2-channel stereo CODEC. With IDT’s headphone drive capability, head- phones can be driven with no external amplifier

Parametrics

Specifications of STAC9750XXTAEC1X
Single Supply Voltage (typ) 3.3/5V Single Supply Voltage (min) 3.135V
Single Supply Voltage (max) 3.465/5.25V Package Type TQFP
Lead Free Status / RoHS Status Compliant

Features

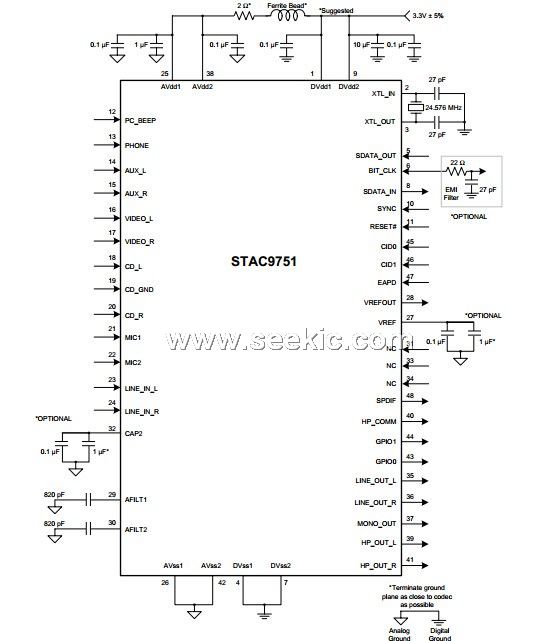

Full Duplex Stereo 18-bit ADCs and 20-bit DACs?AC’97 Rev 2.2 CompliantHigh Performance Σ? Technology??SPDIF Output?Crystal Elimination Circuit?Headphone amplifier?Independent Sample Rates for ADCs & DACs(hardware SRCs)?20dB or 30dB Microphone Boost Capability?90dB SNR LINE-LINE?5-Wire AC-Link Protocol Compliance?Digital-Ready Architecture?General Purpose I/O?+3.3 V (STAC9751) and +5 V (STAC9750) AnalogPower Supply Options?Pin Compatible With STAC9700/21/56/66?IDT Surround (SS3D) Stereo Enhancement?Energy Saving Dynamic Power Modes

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STAC9750XXTAEC1X
STAC9750XXTAEC1X
IDT
Audio CODECs AC97 2.2 2-CHANNEL CODEC
Data Sheet
0-1: $6.26
1-10: $5.13
10-100: $4.63
100-250: $4.25
