Product Summary

The STLC60133 is a dual amplifier featuring a high slew rate and a large bandwidth optimized for XDSL applications. The device is available in a HTSSOP 28 pin package (4x9 mm) with an exposed leadframe. Thanks to its small package this line driver is suitable for high density ADSL line card. Two digital pins (PWDN0 and PWDN1) allow the driv-er to work in full performance mode, in low-powermode or two intermediate bias states.The low-power mode biases the output stage in orderto provide a low impedance at the amplifier outputsfor back termination.The STLC60133 is designed optimizing bandwidthand distortion performances. For proper device oper-ating it is necessary to work with a gain level greaterthan 15.6dB.Typical differential gain is normally +27dB, while typ-ical common mode gain is 15.6dB

Parametrics

Specifications of STLC60133
Power Supply Requirement Dual Slew Rate 400V/us
Pin Count 28 Supply Current 12.5 mA
Maximum Operating Temperature 85 C Mounting Style SMD/SMT
Package / Case HTSSOP-28 Minimum Operating Temperature - 40 C
Lead Free Status / RoHS Status Not Compliant



Features

LOW NOISE : 4nV/
■ HIGH PEAK OUTPUT CURRENT: 500 mA
■ HIGH SPEED
– 140MHz Gain Bandwidth
– 30MHz Gain Flatness
– 400 V/us Slew Rate
■ LOW POWER OPERATION
– ±5V to ±15V Voltage Supply
– 12.5 mA/Amp (typ) Supply current
– Power reduced Current
■ LOW SINGLE TONE DISTORTION
■ THERMAL AND OVERLOAD PROTECTION
■ HTSSOP28 PACKAGE
■ -40 TO +85°C OPERATING RANGE

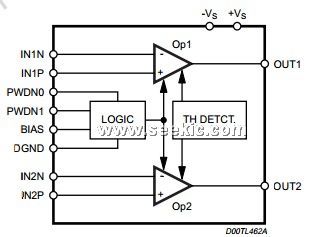

Diagrams
