Product Summary
Handy Terminal, Audio-visual equipment, PC peripher al, Digital home electrical appliance, Portable multime dia device, Embedded application
Parametrics

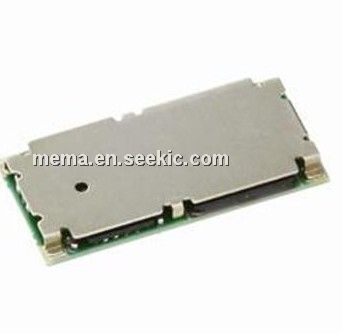

Specifications of WYSAAVDX7
Rohs yes Protocol Supported 802.11 b/g/n
Data Rate 150 Mbps Interface Type SDIO
Operating Supply Voltage 3.4 V to 5.5 V Maximum Operating Temperature + 80 C
Dimensions 35 mm x 15 mm x 2.9 mm Minimum Operating Temperature - 20 C
Features
IEEE802.11b/g/n standard conformity Low standby current (with advanced power save and sleep mode) Transmit speed : 11/5.5/2/1 Mbps(11b), 54/48/36/24/1 8/12/9/6 Mbps(11g), 150~6.5 Mbps (11n) Channel Number : 1 to 13ch (11bg) Interface : SDIO Built-in Antenna, EEPROM, X’tal, 2G-PA, BPF Security : WEP (64/128), TKIP, AES, WPA/WPA2, WAPI Small Outline : 35.0 x 15.0 x 2.9 (Max) mm, Metal c ase package FCC, CE Type Approvals Utilizes 88W8787 IC RoHS Conformity

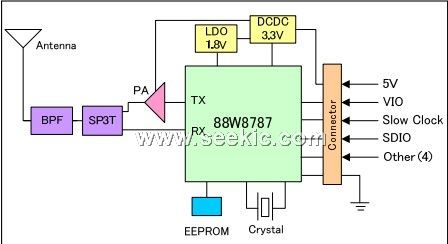

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 WYSAAVDX7 |
Taiyo Yuden |
WiFi / 802.11 Modules W-LAN MODULE W/ ANTENNA & X'TAL |
Data Sheet |
|
|
||||||||||||
