Z8S18020VSG1960

Product Summary

Code Compatible with ZiLOG Z80Extended InstructionsTwo Chain-Linked DMA ChannelsLow Power-Down ModesOn-Chip Interrupt ControllersThree On-Chip Wait-State GeneratorsOn-Chip Oscillator/GeneratorExpanded MMU Addressing (Up to 1 MB)Clocked Serial I/O Port?The enhanced Z8S180/Z8L180significantly improves onprevious Z80180 models, while still providing full back-ward compatibility with existing ZiLOG Z80 devices. TheZ8S180/Z8L180 now offers faster execution speeds, pow-er-saving modes, and EMI noise reduction.?This enhanced Z180design also incorporates additionalfeature enhancements to the ASCIs, DMAs, andmode power consumption. With the addition of ESCC-likeBaud Rate Generators (BRGs), the two ASCIs offer the flex-ibility and capability to transfer data asynchronously at ratesof up to 512 Kbps. In addition, the ASCI receiver featuresa 4-byte first in/first out (FIFO) buffer which reduces thelikelihood of overrun errors. The DMAs have been modifiedto allow for chain-linking of the two DMA channels whenset to take their DMA requests from the same peripheralsdevice. This feature allows for nonstop DMA operation be-tween the two DMA channels

Parametrics

Specifications of Z8S18020VSG1960
Processor Type Z180 Features Enhanced Z180
Speed 20MHz Voltage 5V
Mounting Type Surface Mount Package / Case 68-LCC (J-Lead)
Processor Series Z8S180X Core Z80
Data Bus Width 8 bit Maximum Clock Frequency 20 MHz
Number Of Timers 2 Operating Supply Voltage 0 V to 3.3 V
Maximum Operating Temperature + 70 C Mounting Style SMD/SMT
Development Tools By Supplier Z8S18000ZEM Minimum Operating Temperature 0 C
Lead Free Status / RoHS Status Lead free / RoHS Compliant Other names 269-4305
Z8S18020VSG1960

Features

Code Compatible with ZiLOG Z80? CPU Extended Instructions Two Chain-Linked DMA Channels Low Power-Down Modes On-Chip Interrupt Controllers Three On-Chip Wait-State Generators On-Chip Oscillator/Generator Expanded MMU Addressing (Up to 1 MB) Clocked Serial I/O Port Two 16-Bit Counter/Timers Two Enhanced UARTs (up to 512 Kbps) Clock Speeds: 10, 20, 33 MHz Operating Range: 5V (3.3V@ 20 MHz) Operating Temperature Range: 0°C to +70°C –40°C to +85°C Extended Temperature Range Three Packaging Styles – 68-Pin PLCC – 64-Pin DIP – 80-Pin QFP

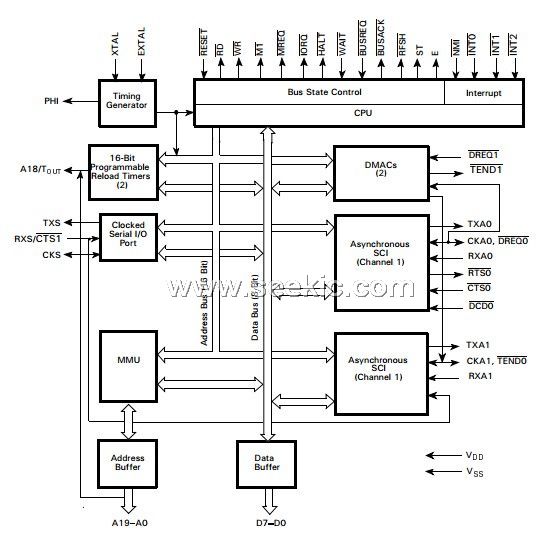

Diagrams
