Product Summary

Finisar’s Laserwire? active cables provide the lowest-cost serial data link solution for upto 10 Gb/s, while providing a very lightweight, low-EMI and low-power alternative tocomparable copper solutions. Laserwire? operates independently of protocol and canthus be used in a wide range of applications. Laserwire? plugs into the Laserwire?Jack (P/N FCBJ110LE1), a small-footprint host-board connector. In addition, connectionto SFP+ or XFP ports is possible using Laserwire? XFP or SFP+ adapters (P/NFTLX0011D4BNL or FTLX0071D4BNL, respectively). Laserwire? utilizes a limitingreceiver, avoiding the challenges of a linear receiver interface.

Parametrics

1/10 Gigabit Ethernet? 1/2/4/8G Fibre Channel? InfiniBand x1? High Performance ComputingInterconnects? SATA/SAS? HDMI? PCI-e x1

Features

Single 1.0 – 10.3125 Gb/sbi-directional link.? RoHS-6 compliant (lead-free)? Available in lengths of3, 5, 10 and 30m? Metal enclosure for low EMI? Single 3.3V power supply? Low power dissipation:<500mW typical per end? Operating temperature range:0°C to 60°C? RJ-45 width? Red/Green LED link indicators

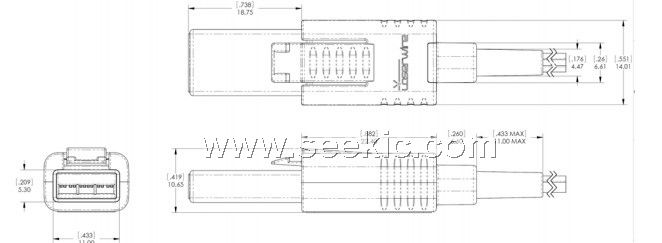

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FCBP110LD1L10
FCBP110LD1L10

CABLE 10.5GBPS 10M LASERWIRE
Data Sheet
0-1: $88.13
1-25: $79.49
25-100: $76.61
100-250: $74.30
250-500: $72.58
500-1000: $69.12

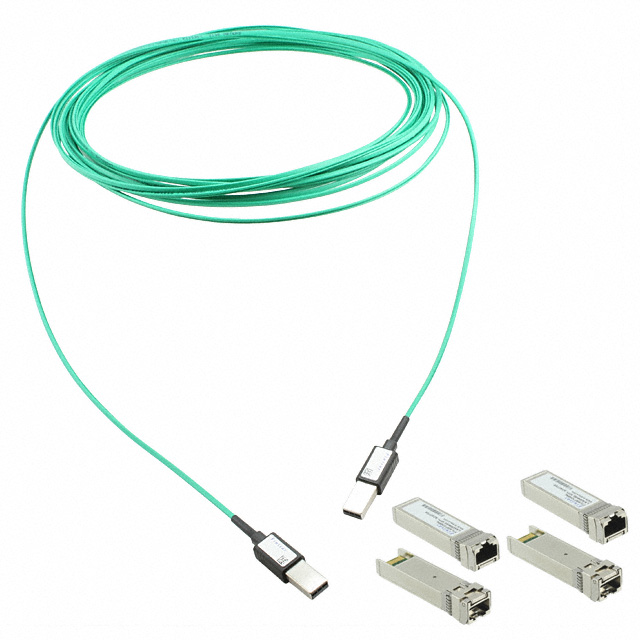

FCBP110LD1L10S
FCBP110LD1L10S

KIT 10M LASERWIRE SFP+
Data Sheet
0-1: $92.22
1-25: $84.59
25-100: $82.68
100-250: $81.41
250-500: $79.50
500-1000: $76.32
