Product Summary

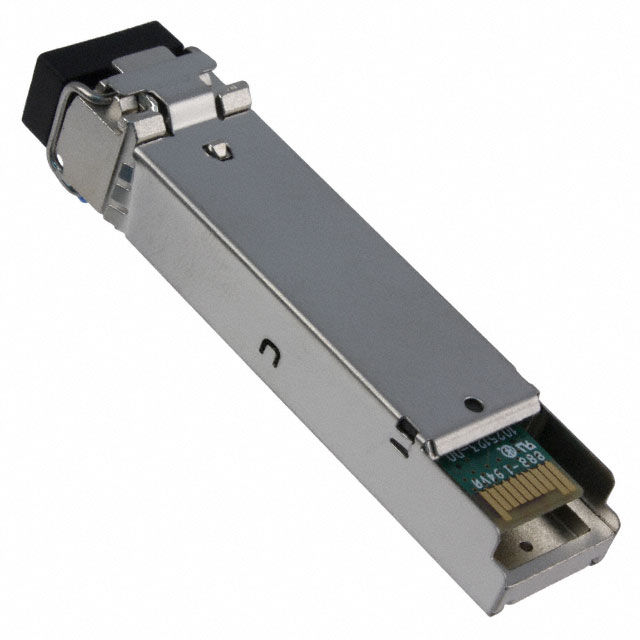

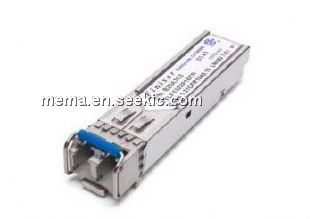

Finisar’s FTLF1322P1xTR Small Form Factor Pluggable (SFP) transceivers arecompatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)They comply with SONET and SDH standardsSR/STM I-4. In addition, they comply with SONET and SDH standards at OC-3 IR-1/STM S-1.1 and OC-3 SR/STM I-1, as detailed in Finisar Application Note AN-2042.Digital diagnostics functions are available via the 2-wire serial bus specified in the SFPMSA. They are RoHS compliant and lead-free per Directive 2002/95/EC

Parametrics

Specifications of FTLF1322P1BTR
Package 20SFP Mounting Snap in
Wavelength 1356(Max)/1600(Max) nm Rise Time 0.3 ns
Operating Supply Voltage 3.1 to 3.5 V Data Rate 622Mbps
Applications Ethernet Voltage - Supply 3.1 V ~ 3.5 V
Connector Type LC Duplex Mounting Type SFP
Lead Free Status / RoHS Status Lead free / RoHS Compliant Other names 775-1017

Features

F i n i s a rProduct SpecificationOC-12 IR-1/STM S-4.1 RoHS Compliant Pluggable SFP TransceiverPRODUCT FEATURES? Up to 622 Mb/s bi-directionaldata links? Hot-pluggable SFP footprint? Built-in digital diagnostic functions? Uncooled Fabry-Perot 1310nmlaser transmitter? Duplex LC connector? RoHS compliant and lead-free? Metal enclosure, for lower EMI? Single 3.3V power supply? Low power dissipation <700mWtypical? Industrial operating temperaturerange: -40°C to 85°C

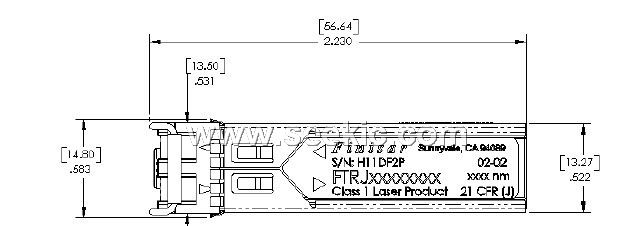

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLF1322P1BTR
FTLF1322P1BTR

TXRX OPT SFP 622 MB/S 1310NM
Data Sheet
0-1: $43.56
1-25: $39.07
25-100: $36.96
100-250: $35.11
250-500: $34.06
500-1000: $32.74
1000-2500: $31.94
2500-5000: $31.68
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLF1217P2BTL
FTLF1217P2BTL

TXRX OPT SFP 125 MB/S 1310NM
Data Sheet
0-1: $38.76
1-25: $34.20
25-100: $32.60
100-250: $30.78
250-500: $29.64
500-1000: $28.50
1000-2500: $28.04
2500-5000: $27.36
FTLF1321P1BTL
FTLF1321P1BTL

TXRX OPT SFP 2 GB/S 1310NM
Data Sheet
0-1: $70.08
1-25: $62.63
25-100: $59.13
100-250: $56.94
250-500: $56.06
500-1000: $53.44
1000-2500: $52.56
FTLF1322P1BTR
FTLF1322P1BTR

TXRX OPT SFP 622 MB/S 1310NM
Data Sheet
0-1: $43.56
1-25: $39.07
25-100: $36.96
100-250: $35.11
250-500: $34.06
500-1000: $32.74
1000-2500: $31.94
2500-5000: $31.68
FTLF1323P1BTL
FTLF1323P1BTL

TXRX OPT SFP 155 MB/S 1310NM
Data Sheet
0-1: $50.88
1-25: $45.47
25-100: $42.93
100-250: $41.34
250-500: $40.70
500-1000: $38.80
1000-2500: $38.16
FTLF8519F2GCL
FTLF8519F2GCL

TXRX OPT SFF 2 GB/S 850NM
Data Sheet
0-1: $26.98
1-25: $23.33
25-100: $21.87
100-250: $20.41
250-500: $19.39
500-1000: $18.66
1000-2500: $18.08
2500-5000: $17.50
FTLF8519F2GNL
FTLF8519F2GNL

TXRX OPT SFF 2 GB/S 850NM
Data Sheet
0-1: $28.75
1-25: $24.86
25-100: $23.31
100-250: $21.76
250-500: $20.67
500-1000: $19.89
1000-2500: $19.27
2500-5000: $18.65
