Product Summary

Product Specification2.125 Gb/s RoHS Compliant Short-Wavelength SFP TransceiverPRODUCT FEATURESUp to 2.125 Gb/s bi-directionaldata linksHot-pluggable SFP footprintBuilt-in digital diagnostic functions850nm Oxide VCSEL lasertransmitterDuplex LC connectorRoHS Compliant and Lead-FreeUp to 500m on 50/125μm MMF,300m on 62.5/125μm MMFMetal enclosure, for lower EMISingle 3.3V power supplyLow power dissipationIndustrial operating temperaturerange: -40°C to 85°CFinisar’s FTLF8519P2xTL Small Form Factor Pluggable (SFP) transceivers arecompatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)They are simultaneously compatible with Gigabit Ethernet as specified in IEEE Std2802.3and Fibre Channel FC- PI-2 Rev. 5.04per Directive 2002/95/ECand Finisar Application Note AN-2038. Digital diagnosticsfunctions are available via the 2-wire serial bus specified in the SFP MSA

Parametrics

Specifications of FTLF8519P2BTL
Wavelength 860(Max) nm Rise Time 0.15/0.09 ns
Jitter 0.065 ns Operating Supply Voltage 3 to 3.6 V
Data Rate 2.125Gbps Applications Ethernet
Voltage - Supply 3 V ~ 3.6 V Connector Type LC Duplex
Mounting Type SFP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Other names 775-1041

Features

Up to 2.125 Gb/s bi-directionaldata linksHot-pluggable SFP footprintBuilt-in digital diagnostic functions850nm Oxide VCSEL lasertransmitterDuplex LC connectorRoHS Compliant and Lead-FreeUp to 500m on 50/125μm MMF,300m on 62.5/125μm MMFMetal enclosure, for lower EMISingle 3.3V power supplyLow power dissipationIndustrial operating temperaturerange: -40°C to 85°C

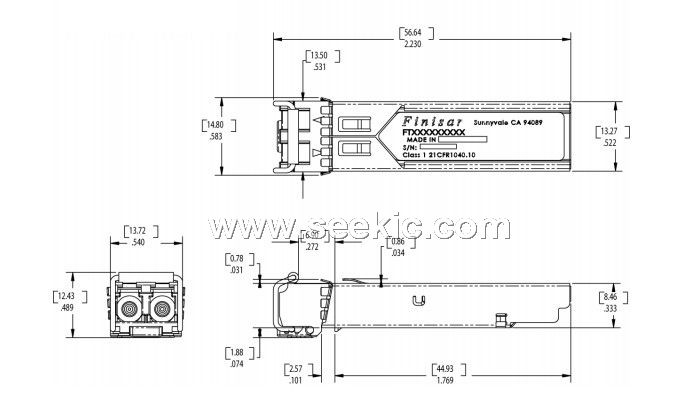

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLF8519P2BTL
FTLF8519P2BTL

TXRX OPT SFP 2 GB/S 850NM
Data Sheet
0-1: $30.41
1-25: $26.30
25-100: $24.66
100-250: $23.02
250-500: $21.87
500-1000: $21.04
1000-2500: $20.39
2500-5000: $19.73
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLF1217P2BTL
FTLF1217P2BTL

TXRX OPT SFP 125 MB/S 1310NM
Data Sheet
0-1: $38.76
1-25: $34.20
25-100: $32.60
100-250: $30.78
250-500: $29.64
500-1000: $28.50
1000-2500: $28.04
2500-5000: $27.36
FTLF1318P2BCL
FTLF1318P2BCL

TXRX OPT SFP 1 GB/S 1310NM
Data Sheet
0-1: $42.57
1-25: $38.18
25-100: $36.12
100-250: $34.31
250-500: $33.28
500-1000: $31.99
1000-2500: $31.22
2500-5000: $30.96
FTLF1318P2BTL
FTLF1318P2BTL

TXRX OPT SFP 1.25GBPS 1310NM
Data Sheet
0-1: $46.53
1-25: $41.74
25-100: $39.48
100-250: $37.51
250-500: $36.38
500-1000: $34.97
1000-2500: $34.12
2500-5000: $33.84
FTLF1318P3BTL
FTLF1318P3BTL

TXRX SFP 1.25GB/S 1310NM
Data Sheet
0-1: $55.20
1-25: $42.78
25-100: $40.02
100-250: $38.64
250-500: $37.95
500-1000: $35.19
1000-2500: $34.50
FTLF1319F1GTL
FTLF1319F1GTL

TXRX OPT SFF 2 GB/S 1310NM
Data Sheet
0-1: $68.85
1-25: $62.10
25-100: $59.85
100-250: $58.05
250-500: $56.70
500-1000: $54.00
FTLF1319P1BTL
FTLF1319P1BTL

TXRX OPT SFP 2 GB/S 1310NM
Data Sheet
Negotiable
