Product Summary

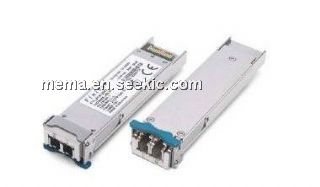

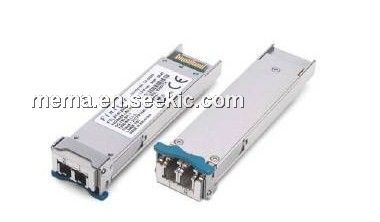

Finisar’s FTLX1412M3BTL Industrial Temperature Small Form Factor 10Gb/s (XFP)transceivers are compliant with the current XFP Multi-Source Agreement (MSA)1Specification. They comply with SONET OC-192 SR-1, SDH STM I-64.1, 10-GigabitEthernet 10GBASE-LR/LW per IEEE 802.3ae, 10G Fibre Channel 1200-SM-LL-L.Digital diagnostics functions are available via a 2-wire serial interface, as specified in theXFP MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/ECand Finisar Application Note AN-2038

Parametrics

Specifications of FTLX1412M3BTL Package 30XFP Mounting Panel Wavelength 1355(Max)/1600(Max) nm Rise Time 0.038 ns Operating Supply Voltage 3.13 to 3.46 V

Features

Supports 9.95Gb/s to 11.3Gb/sbit rates? Industrial temperature range:-40°C to 85°C? RoHS-6 Compliant (lead-free)? Hot-pluggable XFP footprint? Single Power supply: 3.3V? Maximum link length of 10km? Uncooled 1310nm DFB laser? Duplex LC connector? No Reference Clock required? Built-in digital diagnostic functions? Standard bail release mechanism

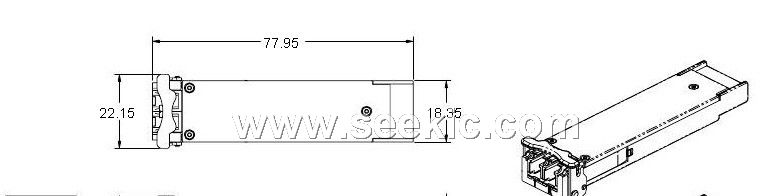

Diagrams
