Product Summary

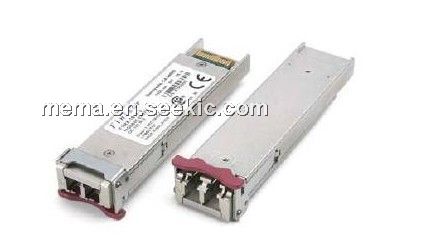

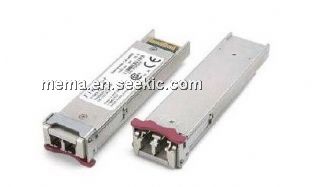

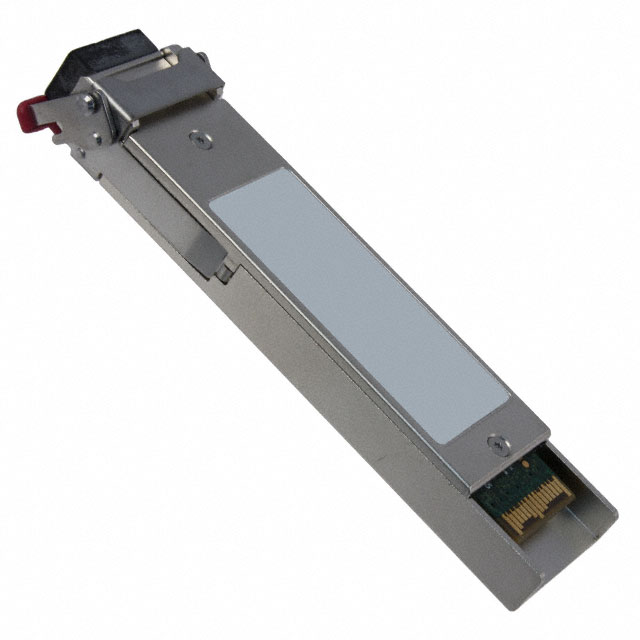

F i n i s a r10Gb/s 40km Multi-Rate XFP Optical TransceiverPRODUCT FEATURES? Supports 9.95Gb/s to 11.1Gb/sbit rates? Hot-pluggable XFP footprint? Maximum link length of 40km? RoHS-6 Compliant (lead-free)? Temperature-stabilized EMLtransmitter? Duplex LC connector? Power dissipation <3.5W? Built-in digital diagnostic functions? Temperature range: -5°C to 70°CFinisar’s 40km FTLX1611M3 Small Form Factor 10Gb/s (XFP) transceivers complywith the current XFP Multi-Source Agreement (MSA) SpecificationSONET OC-192 IR-2, OC-192 IR-3, SDH STM S-64.2b, STM S-64.3b as well as with10-Gigabit Ethernet 10GBASE-ER/EW per IEEE 802.3ae and 40km 10G Fibre Channelapplications. Digital diagnostics functions are available via a 2-wire serial interface, asspecified in the XFP MSA. The transceiver is RoHS compliant and lead free per3Directive 2002/95/EC, and Finisar Application Note AN-2038

Parametrics

Specifications of FTLX1611M3 Package 30XFP Mounting Snap Fit To Panel Wavelength 1565(Max)/1600(Max) nm Rise Time 0.038 ns Operating Supply Voltage 4.75 to 5.25 V Data Rate 11.1Gbps Applications Ethernet Voltage - Supply 4.75 V ~ 5.25 V Connector Type LC Duplex Mounting Type XFP Lead Free Status / RoHS Status Lead free / RoHS Compliant Other names 775-1050

Features

Supports 9.95Gb/s to 11.1Gb/sbit rates? Hot-pluggable XFP footprint? Maximum link length of 40km? RoHS-6 Compliant (lead-free)? Temperature-stabilized EMLtransmitter? Duplex LC connector? Power dissipation <3.5W? Built-in digital diagnostic functions? Temperature range: -5°C to 70°C

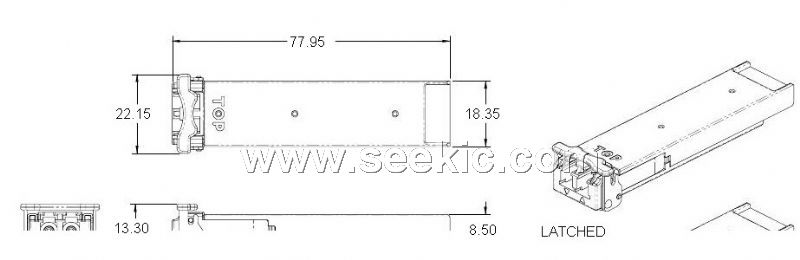

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLX1611M3
FTLX1611M3

TXRX OPT XFP 10 GB/S 1550NM
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLX1341E2
FTLX1341E2

TXRX OPT SFP+ 10 GB/S 220M
Data Sheet
0-2: $298.80
FTLX1371D3BCL
FTLX1371D3BCL

TXRX OPT SFP+ 10 GB/S 220M
Data Sheet
0-10: $146.64
FTLX1412D3BCL
FTLX1412D3BCL

TXRX OPT XFP 10 GB/S 1310NM
Data Sheet
0-1: $197.49
1-25: $181.15
25-100: $177.06
100-250: $174.34
250-500: $170.25
500-1000: $163.44
FTLX1412M3BCL
FTLX1412M3BCL

TXRX OPT XFP 10 GB/S 1310NM
Data Sheet
0-1: $208.80
1-25: $191.52
25-100: $187.20
100-250: $184.32
250-500: $180.00
500-1000: $172.80
FTLX1413D3BCL
FTLX1413D3BCL

XFP OPTICAL TRANSCEIVER 10GB/S
Data Sheet
0-1: $167.91
1-10: $159.80
10-25: $154.01
25-100: $150.54
100-250: $148.22
250-500: $144.75
500-1000: $138.96
FTLX1441E2
FTLX1441E2

TXRX OPT X2 10 GB/S 1310NM
Data Sheet
Negotiable
