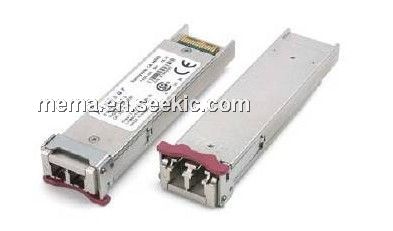

Product Summary

Finisar’s 40km FTLX1612M3BCL Small Form Factor 10Gb/s XFP transceivers complywith the current XFP Multi-Source Agreement (MSA) Specificationwith SONET OC-192 IR-2, OC-192 IR-3, SDH STM S-64.2b, STM S-64.3b as well aswith 10-Gigabit Ethernet 10GBASE-ER/EW per IEEE 802.3ae and 40km 10G FibreChannel applications. Digital diagnostics functions are available via a 2-wire serialinterface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead free3per Directive 2002/95/EC, and Finisar Application Note AN-2038

Parametrics

Specifications of FTLX1612M3BCL Package 30XFP Mounting Snap Fit To Panel Wavelength 1565(Max)/1600(Max) nm Rise Time 0.038 ns Operating Supply Voltage 4.75 to 5.25 V

Features

Supports 9.95Gb/s to 11.3Gb/sbit rates? Supports 8.5Gb/s Fibre-Channel inCDR Bypass mode? Maximum link length of 40km? RoHS-6 Compliant (lead-free)? Temperature-stabilized 1550nm800 ps/nm EML transmitter? 3.3V and 5V power suppliesrequired? Duplex LC connector? Power dissipation < 3.0W? Built-in digital diagnostic functions? Commercial temperature range:-5°C to 75°C

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLX1612M3BCL
FTLX1612M3BCL

40K XFP OPTICAL TRANSCEIVER
Data Sheet
0-1: $496.86
1-25: $477.75
25-100: $470.11
100-250: $458.64
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLX1341E2
FTLX1341E2

TXRX OPT SFP+ 10 GB/S 220M
Data Sheet
0-2: $298.80
FTLX1371D3BCL
FTLX1371D3BCL

TXRX OPT SFP+ 10 GB/S 220M
Data Sheet
0-10: $146.64
FTLX1412D3BCL
FTLX1412D3BCL

TXRX OPT XFP 10 GB/S 1310NM
Data Sheet
0-1: $197.49
1-25: $181.15
25-100: $177.06
100-250: $174.34
250-500: $170.25
500-1000: $163.44
FTLX1412M3BCL
FTLX1412M3BCL

TXRX OPT XFP 10 GB/S 1310NM
Data Sheet
0-1: $208.80
1-25: $191.52
25-100: $187.20
100-250: $184.32
250-500: $180.00
500-1000: $172.80
FTLX1413D3BCL
FTLX1413D3BCL

XFP OPTICAL TRANSCEIVER 10GB/S
Data Sheet
0-1: $167.91
1-10: $159.80
10-25: $154.01
25-100: $150.54
100-250: $148.22
250-500: $144.75
500-1000: $138.96
FTLX1441E2
FTLX1441E2

TXRX OPT X2 10 GB/S 1310NM
Data Sheet
Negotiable
