Product Summary

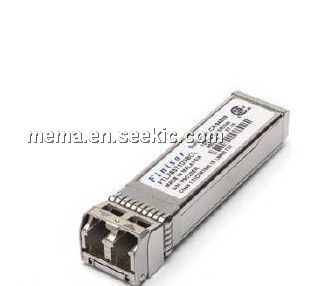

Finisar’s FTLX8571D3BCL 10Gb/s SFP+ transceivers are designed for use in 10-GigabitEthernet links over multimode fiber. They are compliant with SFF-8431IEEE 802.3ae 10GBASE-SR/SWdiagnostics functions are available via a 2-wire serial interface, as specified in SFF-58472. The FTLX8571D3BCL is a “limiting module”, i.e., it employs a limiting receiver.Host board designers using an EDC PHY IC should follow the IC manufacturer’srecommended settings for interoperating the host-board EDC PHY with a limitingreceiver SFP+ module. The transceiver is RoHS compliant and lead free per Directive62002/95/EC, and Finisar Application Note AN-2038

Parametrics

Specifications of FTLX8571D3BCL
Package 20SFP Mounting Snap Fit To Panel
Wavelength 850/860(Max) nm Rise Time 0.028(Min) ns
Operating Supply Voltage 3.14 to 3.46 V Data Rate 10Gbps
Applications Ethernet Voltage - Supply 3.3V
Connector Type LC Duplex Mounting Type SFP+
Lead Free Status / RoHS Status Lead free / RoHS Compliant Other names 775-1060

Features

Hot-pluggable SFP+ footprint? Supports 9.95 to 10.5 Gb/s bitrates*? Power dissipation < 1W? RoHS-6 compliant (lead-free)? Commercial temperature range0°C to 70°C? Single 3.3Vpower supply? Maximum link length of 300m on2000 MHZ-km MMF? Uncooled 850nm VCSEL laser? Receiver limiting electricalinterface? Duplex LC connector? Built-in digital diagnostic functions

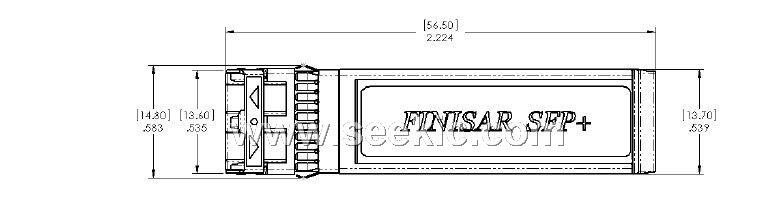

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLX8571D3BCL
FTLX8571D3BCL

TXRX SFP+ MULTI 10GB/S 850NM
Data Sheet
0-1: $79.87
1-25: $72.04
25-100: $69.43
100-250: $67.34
250-500: $65.77
500-1000: $62.64
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FTLX1341E2
FTLX1341E2

TXRX OPT SFP+ 10 GB/S 220M
Data Sheet
0-2: $298.80
FTLX1371D3BCL
FTLX1371D3BCL

TXRX OPT SFP+ 10 GB/S 220M
Data Sheet
0-10: $146.64
FTLX1412D3BCL
FTLX1412D3BCL

TXRX OPT XFP 10 GB/S 1310NM
Data Sheet
0-1: $197.49
1-25: $181.15
25-100: $177.06
100-250: $174.34
250-500: $170.25
500-1000: $163.44
FTLX1412M3BCL
FTLX1412M3BCL

TXRX OPT XFP 10 GB/S 1310NM
Data Sheet
0-1: $208.80
1-25: $191.52
25-100: $187.20
100-250: $184.32
250-500: $180.00
500-1000: $172.80
FTLX1413D3BCL
FTLX1413D3BCL

XFP OPTICAL TRANSCEIVER 10GB/S
Data Sheet
0-1: $167.91
1-10: $159.80
10-25: $154.01
25-100: $150.54
100-250: $148.22
250-500: $144.75
500-1000: $138.96
FTLX1441E2
FTLX1441E2

TXRX OPT X2 10 GB/S 1310NM
Data Sheet
Negotiable
