Product Summary

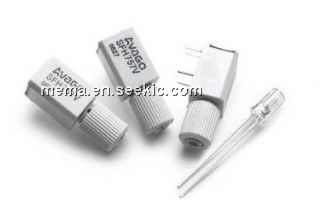

The SFH757 is a low-cost transmitter for simple opticaldata transmission with polymer optical fiber. This veryrobust 650nm LED can be used for speeds up to 100MBd.The transparent plastic package has an aperture wherethe the 2.2mm fiber-end can be inserted and fixed withglue. This easy coupling method is extremely cost-effective.The V-housing allows easy coupling of unconnectorized2.2mm plastic optical fiber by means of an axial lockingscrew.
Parametrics
Lead Free Status / RoHS Status Not Compliant
Household electronics ? Power electronics ? Optical networks ? Light barriers
Features
High speed transmitter for about 50 Mbit/s up to100 Mbit/s (with peaking circuit)?2.2 mm aperture holds standard 1000 micron plasticfiber?No fiber stripping required?Molded microlens for efficient couplingPlastic Connector Housing?Mounting screw attached to the connector?Interference-freetransmissionhousing?Transmitter and receiver can be flexibly positioned?No cross talk?Auto insertable and wave solderable?Supplied in tubes

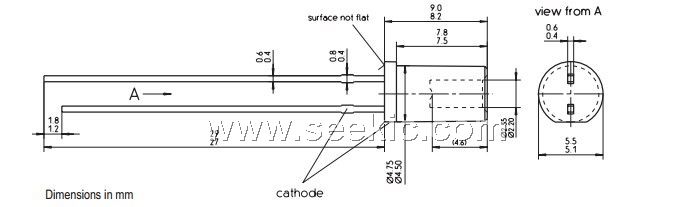

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SFH757V |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SFH7221 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH752 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH752V |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH756 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH756V |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SFH757 |
Other |
|
Data Sheet |
Negotiable |
|
||||
