Product Summary

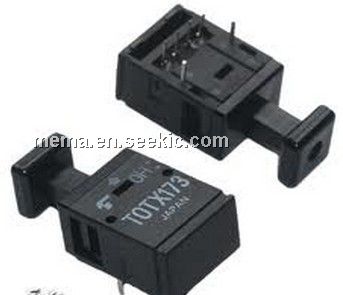

FIBER OPTIC TRANSMITTING MODULE FOR DIGITAL AUDIO EQUIPMENT
Parametrics
Specifications of TOTX173
Optical Fiber Type TX Data Transfer Rate 6Mbps
Operating Temperature Classification Commercial Peak Wavelength 660nm
Operating Supply Voltage (min) 4.75V Operating Supply Voltage (typ) 5V
Operating Supply Voltage (max) 5.25V Operating Temp Range -20C to 70C
Mounting Through Hole Pin Count 6
Lead Free Status / RoHS Status Not Compliant
Features
Storage Temperature Tstg ?40 to 70 °C
Operating Temperature Topr ?20 to 70 °C
Supply Voltage VCC ?0.5 to 7 V
Input Voltage VIN ?0.5 to VCC + 0.5 V
Soldering Temperature Tsol 260 (Note 1) °C
Conform to JEITA Standard CP?1201
(For Digital Audio Interfaces including
Fiber Optic inter?connections).
TTL Interface
LED is driven by differential circuit
