Product Summary

The IL300 linear optocoupler consists of an AlGaAs IRLEDirradiating an isolated feedback and an output PINphotodiode in a bifurcated arrangement. The feedbackphotodiode captures a percentage of the LEDs flux andgenerates a control signal (I) that can be used to servo theP1LED drive current. This technique compensates for theLED’s non-linear, time, and temperature characteristics.The output PIN photodiode produces an output signal (Ithat is linearly related to the servo optical flux created by theLED.The time and temperature stability of the input-outputcoupler gain (K3) is insured by using matched PINphotodiodes that accurately track the output flux of the LED.


APPLICATIONS
? Power supply feedback voltage/current
? Medical sensor isolation
? Audio signal interfacing
? Isolated process control transducers
? Digital telephone isolation



Parametrics

Isolation Voltage 5300 Vrms Current Transfer Ratio 0.5 % to 1.1 %
Forward Current 10 mA Maximum Fall Time 1.75 us
Maximum Rise Time 1.75 us Output Device PIN Photodiode
Output Type DC Configuration 1 Channel
Input Type AC/DC Maximum Forward Diode Voltage 1.5 V
Maximum Reverse Diode Voltage 5 V Maximum Input Diode Current 60 mA
Maximum Power Dissipation 210 mW Maximum Operating Temperature + 100 C
Minimum Operating Temperature - 55 C Package / Case SMD-8
No. Of Channels 1 Optocoupler Output Type Photodiode
Input Current 10mA Output Voltage 50V
Opto Case Style SMD No. Of Pins 8
Peak Reflow Compatible (260 C) No Number Of Elements 1
Reverse Breakdown Voltage 5V Forward Voltage 1.5V

Features

FEATURES

? Couples AC and DC signals18NC? 0.01 % servo linearity72NC? Wide bandwidth, > 200 kHzK2K16C3? High gain stability, ± 0.005 %/°C typically? Low input-output capacitanceA45? Low power consumption, < 15 mWV? Isolation test voltage, 5300 VD E? Internal insulation distance, > 0.4 mm? Compliant to RoHS Directive 2002/95/EC and inaccordance to WEEE 2002/96/EC

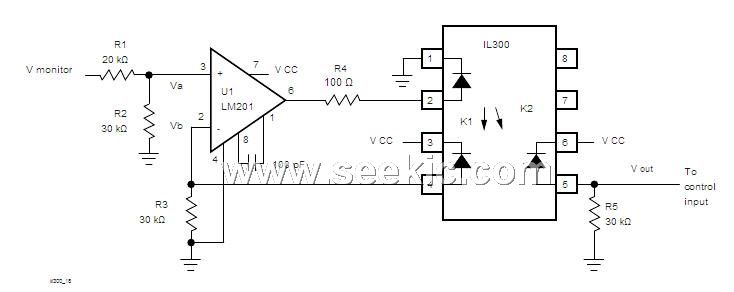

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IL300-F-X007
IL300-F-X007
Vishay Semiconductors
High Linearity Optocouplers High Gain Wide Bandwidth Linear
Data Sheet
0-1: $6.54
1-10: $5.89
10-100: $5.23
100-250: $4.77
