Product Summary
Compact AC-DC PCB-Mount Power Supplies
Parametrics
| Power Supply Type | Switching (Closed Frame) | Voltage - Output | 12V |
|---|---|---|---|
| Number Of Outputs | 1 | Power (watts) | 5W |
| Applications | Commercial | Voltage - Input | 85 ~ 265VAC |
| Mounting Type | Through Hole | 1st Output | 12 VDC @ 450mA |
| Size / Dimension | 2.16" L x 1.77" W x 0.81" H (55mm x 45mm x 20.5mm) | Power (watts) - Rated | 5W |
| Operating Temperature | -10°C ~ 70°C | Efficiency | 76% |
| Approvals | CE, CSA, TUV, UL | Line Regulation | 0.4% |
| Load Regulation | 0.8% | Power Supply Output Type | Fixed |
| No. Of Outputs | 1 | Output Voltage | 12V |
| Output Current | 450mA | Power Rating | 5W |
| Input Voltage | 85V AC To 265V AC / 110V DC To 340V DC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Other names |
285-1434 KWS512 |
Features
Small size and lightweight
PC Board Mountable
-10 to +70 °C Continuous Operation
85 - 265VAC Wide Range Input
World-wide Agency Approvals
UL, CSA, TUV and CE Mark
Convection Cooled
Low Noise Conducted EMI Class B

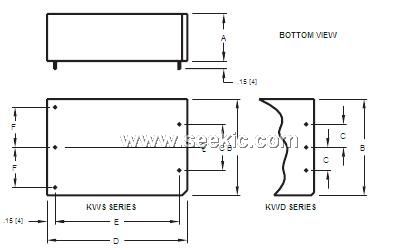

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 KWS5-12 |
TDK-Lambda |
Linear and Switching Power Supplies 12V 0.45A |
Data Sheet |
|
|
||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||
|
KWS5-12 |
TDK-Lambda |
Linear and Switching Power Supplies 12V 0.45A |
Data Sheet |
|
|
||||||||
|
KWS5-15 |
TDK-Lambda |
Linear and Switching Power Supplies 15V 0.35A |
Data Sheet |
|
|
||||||||
|
KWS5-5 |
TDK-Lambda |
Linear and Switching Power Supplies 5V 1A |
Data Sheet |
|
|
||||||||
