MC33663ASEF

MC33663ASEF LIN Transceivers

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.00 / Piece
101 ~ 500 :	1.00 / Piece

PartNumber:: MC33663ASEF

Brand:: Freescale Semiconductor, Inc - Freescale | D/C:

Availability:: Supply Ability: 500/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. huihuiyan's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-10-31

From Other Seller

Part Number:MC33663ASEF
US $1.00 - 2.00
Quantity:

piece

Product Summary

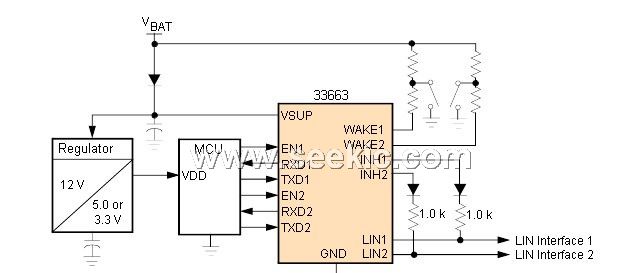

Freescale SemiconductorAdvance InformationLIN 2.1 / SAEJ2602-2 Dual LINPhysical LayerThe local interconnect network (LIN) is a serial communicationprotocol designed to support automotive networks in conjunction withcontroller area network (CAN). As the lowest level of a hierarchicalnetwork, LIN enables cost-effective communication with sensors andactuators when all the features of CAN are not required.The 33663 product line integrates two physical layer LIN busdedicated to automotive LIN sub-bus applications. The MC33663LEFand MC33663SEF devices offer normal baud rate (20 kbps) and theMC33663JEF slow baud rate (10 kbps). Both devices integrate fastbaud rate (above 100 kbps) for test and programming modes. Theypresent excellent electromagnetic compatibility (EMC) and radiatedemission performance, electrostatic discharge (ESD) robustness andsafe behavior, in the event of LIN bus short-to-ground or LIN busleakage during low-power mode

Parametrics

Specifications of MC33663ASEF
Rohs yes Operating Supply Voltage 7 V to 18 V
Supply Current 22 uA Maximum Operating Temperature + 125 C
Package / Case SOIC-14 Minimum Operating Temperature - 40 C
Mounting Style SMD/SMT

Features

Operational from V7.0 to 18 V DC, functional up to 27 V DC,SUPand handles 40 V during load dump? Compatible with LIN protocol specification 2.1, and SAEJ2602-2? Very high immunity against electromagnetic interference? Low standby current in Sleep mode? Over-temperature protection? Permanent dominant state detection? Fast baud rate mode selection reported by RXD? Active bus waveshaping offering excellent radiated emissionperformance? Sustains15.0 kV ESD IEC6100-4-2 on LIN BUS and VSUP pins±? 5.0 and 3.3 V compatible digital inputs without any external components required
