Product Summary
The SP3508 is a monolithic device that supports eight (8) popular serial interface standardsfor Wide Area Network (WAN) connectivity. The SP3508 is fabricated using a low powerBiCMOS process technology, and incorporates a regulated charge pump allowing +3.3V onlyoperation. Exar's patented charge pump provides a regulated output of +5.5V, which willprovide enough voltage for compliant operation in all modes. Eight (8) drivers and eight (8)receivers can be configured via software for any of the above interface modes at any time.The SP3508 requires no additional external components for compliant operation for all of theeight (8) modes of operation other than six capacitors used for the internal charge pump. Allnecessary termination is integrated within the SP3508 and is switchable when V.35 driversand V.35 receivers, or when V. receivers are used. The SP3508 provides the controls andtransceiver availability for operating as either a DTE or DCE.
Parametrics

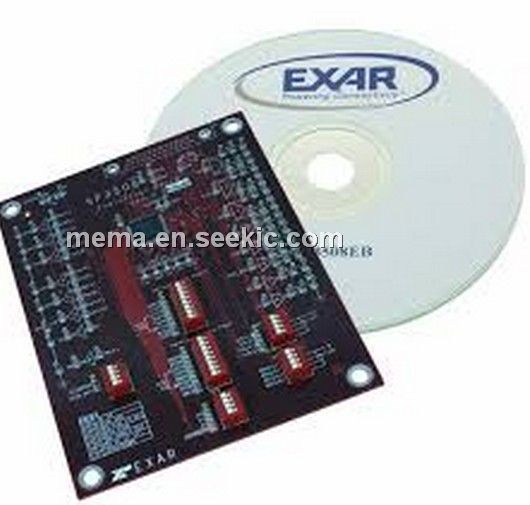

Specifications of SP3508EB
Main Purpose Interface, Transceiver RS-232, RS-449, EIA-530(A), X.21 Embedded No
Utilized Ic / Part SP3508 Primary Attributes Internal Line or Digital Loopback Testing
Secondary Attributes 8 Drivers and 8 Receivers Lead Free Status / Rohs Status Details
Features
FEATURES? Fast 20Mbps Differential Transmission Rates? Internal Transceiver Termination Resistorsfor V. & V.35? Interface Modes:— RS-232 (V.28)— EIA-530 (V.0 & V.)— X.2 (V.)— EIA-530A (V.0 & V.)— RS-449/V.36— V.35 (V.35 & V.28)(V.0 & V.)? Protocols are Software Selectable with 3-Bit Word? Eight (8) Drivers and Eight (8) Receivers?Termination Network Disable Option? Internal Line or Digital Loopback for Diagnostic Testing? Certified conformance to NET1/NET2 and TBR-1TBR-2 by TUV Rheinland (TBR2/3045940.00/04)? Easy Flow-Through Pinout? +3.3V Only Operation? Individual Driver and Receiver Enable/Disable Controls?Operates in either DTE or DCE Mode
