LMX5453SM/NOPB

Product Summary

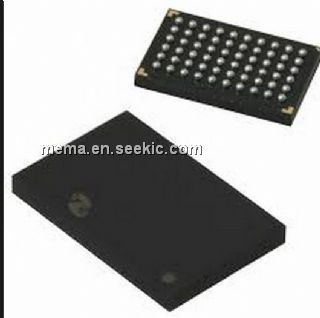

The LMX5453 is a highly integrated Bluetooth 2.0 compliantsolution. The integrated baseband controller and 2.4 GHzradio combine to form a complete, small form-factor (6.1 mmx 9.1 mm x 1.2 mm) Bluetooth node.The on-chip memory, ROM, and Patch RAM provide lowestcost and minimize design risk with the flexibility of firmwareupgrades.The firmware supplied in the on-chip ROM supports a com-plete Bluetooth Link Manager and HCI with communicationthrough a UART or USB interface. This firmware featurespoint-to-point and point-to-multipoint link management, sup-porting data rates up to 723 kbps

Parametrics

Specifications of LMX5453SM/NOPB Output Type Voltage Interface USB Termination Type SMD Supply Voltage Max 3.6V Controller Type Integrated Bluetooth Supply Voltage Min 2.5V Input Voltage 3.6V Package / Case 60-FBGA Frequency 2.4GHz Data Rate - Maximum 723kbps Modulation Or Protocol Bluetooth v2.0, Class 2 Applications Mobile Handsets, USB Dongles Power - Output - Sensitivity -80dBm Voltage - Supply 2.5 V ~ 3.6 V Current - Receiving - Current - Transmitting - Data Interface PCB, Surface Mount Memory Size - Antenna Connector On-Board, Chip Operating Temperature - Lead Free Status / RoHS Status Lead free / RoHS Compliant

Features

The LMX5453 is a drop in replacement for the LMX5452.The LMX5453 has new features added:? eSCO? eSCO over USB HCI transport? Enhanced scatternet? Interlaced scan? Flushing? Audio PCM slave mode support? Generic PCM configurationn Compliant with the Bluetooth 2.0 Core Specification n Better than -80 dBm input sensitivity n Class 2 operation n Low power consumption n Accepts external clock or crystal input: — Clocking option 12/13 MHz with PLL bypass mode for power reduction — 10-20 MHz external clock or crystal network — Secondary 32.768 kHz oscillator for low-power modes — Advanced power management features n High integration: — Implemented in 0.18 μm CMOS technology — RF includes on-chip antenna filter and switch n On-chip firmware with complete HCI n Embedded ROM (200K) and Patch RAM (16.6K) memory n Up to 7 Asynchronous Connection Less (ACL) links n Support for two simultaneous voice or Extended Synchronous Connection Oriented (eSCO) and Synchronous Connection Oriented (SCO) and links n Enhanced scatternet n Interlaced scan n Flushing n Audio PCM slave mode support n Generic PCM configuration n Fractional-N Sigma/Delta modulator n Operating voltage range 2.5–3.6V n I/O voltage range 1.6–3.6V n 60-pad micro-module BGA package (6.1 mm x 9.1 mm x 1.2 mm)

Diagrams
