Product Summary

High Surge Current Rectifier Circuits
? 5 Different Circuits to Choose from
? Up to 1600 Volt Blocking Standard
? UL Recognized E72445

Parametrics

Specifications of M5060SB600
Package / Case Module Voltage - Peak Reverse (max) 600V
Current - Dc Forward (if) 60A Diode Type Single Phase
Speed Standard Recovery >500ns, > 200mA (Io) Mounting Type Chassis Mount
Mounting Style SMD/SMT Output Current 60 A
Product Diode Power Modules Reverse Voltage 240 V
Phase Type Single Phase Number Of Elements 1
Peak Rep Rev Volt 600V Rms Voltage (max) 240V
Peak Non-repetitive Surge Current (max) 800A Avg. Forward Curr (max) 60A
Forward Voltage 1.35V Operating Temp Range -40C to 125C
Pin Count 4 Mounting Screw
Operating Temperature Classification Automotive Lead Free Status / RoHS Status Lead free / RoHS Compliant
Reverse Recovery Time (trr) - Other names CC1657
M5060SB600

Features

M50 Diode Series??? Up to 1600 Volt Blocking Standard? UL Recognized E72445AVAILABLE OPTIONSELECTRICAL SPECIFICATIONSDescriptionMaximum DC Output Current (Tc = 85°C)Maximum Voltage Drop @ Amps PeakOperating Junction Temperature RangeRepetitive Peak Reverse Voltage (AC Line Nominal) [Vpk]Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz) [A]Maximum I2T for Fusing (t=8.3ms) [A2sec]Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W]Isolation Voltage [Vrms]GENERAL SPECIFICATIONSDescriptionWeight (typical)High Surge Current Rectifier Circuits5 Different Circuits to Choose fromSymbolIDVFTJVRRMITSM2ITRJCVISOLM506060 A1.35V @ 50A1.2V @ 100 A-40 - 125°C400 (120 VAC)600 (240 VAC)800 (280 VAC)1200 (480 VAC)1400 (530 VAC)1600 (600 VAC)800 2650 0.45°C/W 2500 4.5 oz (158g) M50100 100 A -40 - 125°C 1500 9350 0.3°C/W

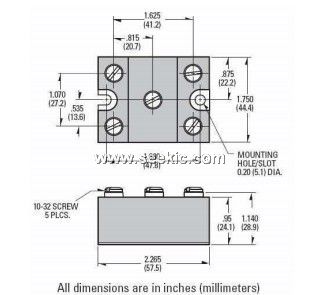

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M5060SB600
M5060SB600
Crydom
Discrete Semiconductor Modules DIODE 60-100 AMP
Data Sheet
0-1: $25.55
1-10: $24.35
10-25: $23.79
25-50: $23.23
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
M5060SB600
M5060SB600
Crydom
Discrete Semiconductor Modules DIODE 60-100 AMP
Data Sheet
0-1: $25.55
1-10: $24.35
10-25: $23.79
25-50: $23.23
M5060TB1400
M5060TB1400
Crydom
Discrete Semiconductor Modules DIODE MODULE 530VAC 60ADC 1400VP
Data Sheet
0-1: $57.83
1-10: $53.18
10-25: $50.80
25-50: $47.93
M5060TB800
M5060TB800
Crydom
Discrete Semiconductor Modules 60A 800V 3PH BRIDGE MODULE POWER
Data Sheet
0-1: $46.73
1-10: $42.95
10-25: $41.05
25-50: $38.72
M5060THC1600
M5060THC1600
Crydom
Discrete Semiconductor Modules 60A 1600V 3PH CC MODULE POWER
Data Sheet
0-1: $48.59
1-10: $44.67
10-25: $42.68
25-50: $40.28
M5060THC800
M5060THC800
Crydom
Discrete Semiconductor Modules 60A 800V 3PH CC MODULE POWER
Data Sheet
0-1: $34.56
1-10: $31.78
10-25: $30.35
25-50: $28.64
M5060TB400
M5060TB400
Crydom
Discrete Semiconductor Modules 60A 400V 3PH BRIDGE MODULE POWER
Data Sheet
0-1: $44.80
1-10: $41.20
10-25: $39.35
25-50: $37.13
