Product Summary

The LIS2L02AS is a dual-axis linear accelerometerthat includes a sensing element and an IC interfaceable to take the information from the sensing elementand to provide an analog signal to the external world.The sensing element, capable to detect the acceler-ation, is manufactured using a dedicated processcalled THELMA (Thick Epi-Poly Layer for Microactu-ators and Accelerometers) developed by ST to pro-duce inertial sensors and actuators in silicon.The IC interface instead is manufactured using aCMOS process that allows high level of integration todesign a dedicated circuit which is trimmed to bettermatch the sensing element characteristics

Parametrics

Specifications of LIS2L02AS
Operating Supply Voltage (min) 3V Operating Supply Voltage (typ) 3.3/5V
Operating Supply Voltage (max) 5.25V Operating Temperature (min) -40C
Operating Temperature (max) 85C Operating Temperature Classification Industrial
Product Height (mm) 2.35mm Mounting Surface Mount
Pin Count 24 Lead Free Status / RoHS Status Specific Sites Compliant

Features

3V TO 5.25V SINGLE SUPPLY OPERATIONTHE SENSITIVITY IS ADJUSTED WITH ATOTAL ACCURACY OF ±10%THE OUTPUT VOLTAGE, OFFSET,SENSITIVITY AND TEST VOLTAGE ARERATIOMETRIC TO THE SUPPLY VOLTAGEDEVICE SENSITIVITY IS ON-CHIP FACTORYTRIMMEDEMBEDDED SELF TESTHIGH SHOCK SURVIVABILITY

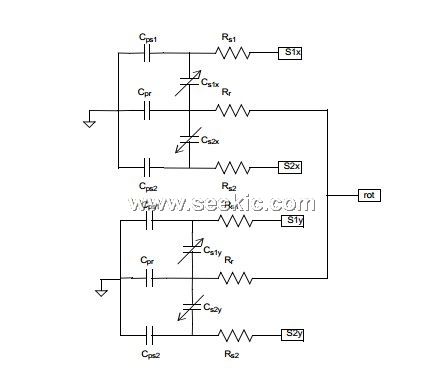

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LIS2L02AS
LIS2L02AS
Other

Data Sheet
Negotiable
LIS2L02AS4-TR
LIS2L02AS4-TR
STMicroelectronics
Board Mount Accelerometers LINEAR ACCELEROMETER 2 AXIS 2G/6G
Data Sheet
Negotiable
LIS2L02AS4
LIS2L02AS4
STMicroelectronics
Board Mount Accelerometers 2-axis +/-2g/+/-6g MEMS Intertial Sensr
Data Sheet
Negotiable
