Product Summary
The MMA7660FC is a ±1.5 g 3-Axis Accelerometer with Digital Output2(IC). It is a very low power, low profile capacitive MEMS sensor featuring alow pass filter, compensation for 0g offset and gain errors, and conversion to6-bit digital values at a user configurable samples per second. The device canbe used for sensor data changes, product orientation, and gesture detectionthrough an interrupt pin (INT). The device is housed in a small 3mm x 3mm x0.9mm DFN package
Parametrics
Specifications of MMA7660FCR1
Operating Supply Voltage (min) 2.4V Operating Supply Voltage (typ) 2.8V
Operating Supply Voltage (max) 3.6V Operating Temperature (min) -40C
Operating Temperature (max) 85C Operating Temperature Classification Industrial
Product Depth (mm) 3mm Product Height (mm) 1mm
Product Length (mm) 3mm Mounting Surface Mount
Pin Count 10 Lead Free Status / RoHS Status Compliant
Features
Features2?Digital Output (IC)?3mm x 3mm x 0.9mm DFN Package?Low Power Current Consumption: Off Mode: 0.4 μA,Standby Mode: 2 μA, Active Mode: 47 μA at 1 ODR?Configurable Samples per Second from 1 to 120 samples a second.?Low Voltage Operation:– Analog Voltage: 2.4 V - 3.6 V– Digital Voltage: 1.71 V - 3.6 V?Auto-Wake/Sleep Feature for Low Power Consumption?Tilt Orientation Detection for Portrait/Landscape Capability?Gesture Detection Including Shake Detection and Tap Detection?Robust Design, High Shocks Survivability (10,000 g)?RoHS Compliant?Halogen Free?Environmentally Preferred Product?Low Cost

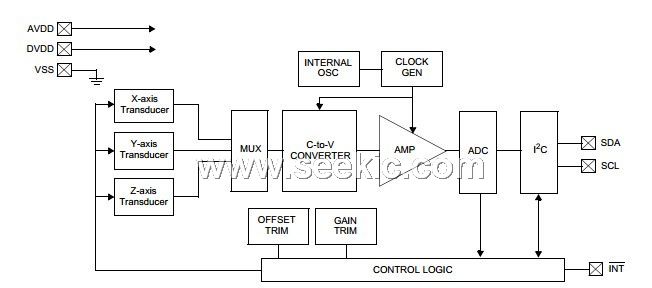

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MMA7660FCR1 |
Freescale Semiconductor |
Board Mount Accelerometers 3-Axis Digital Out Accelerometer |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
MMA701A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA707 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA709 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA710 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MMA7260Q |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G Sensor Accel 3 Axis |
Data Sheet |
Negotiable |
|
||||||||||||
|
MMA7260QR2 |
Freescale Semiconductor |
Board Mount Accelerometers 1.5G XYZ LEADS |
Data Sheet |
Negotiable |
|
||||||||||||
